Explosion Proof Portable Gas Detector XM314 - China Factory Suppliers with Replaceable Sensors & Safety Features

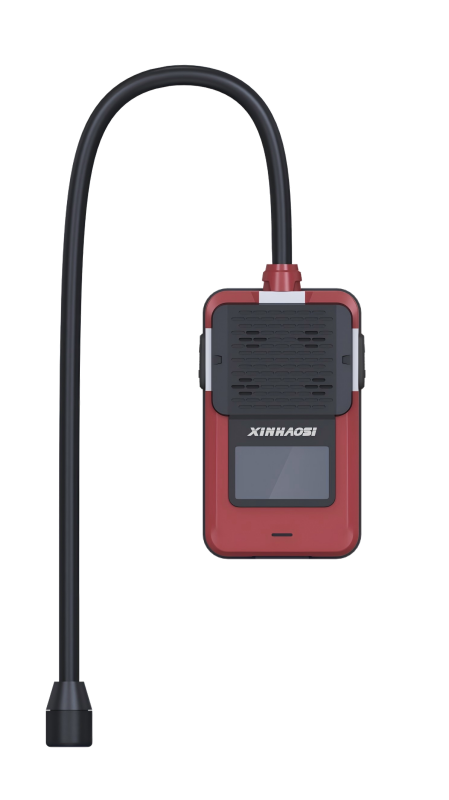

Portable Gas Detector-Goosenck-XM314.png

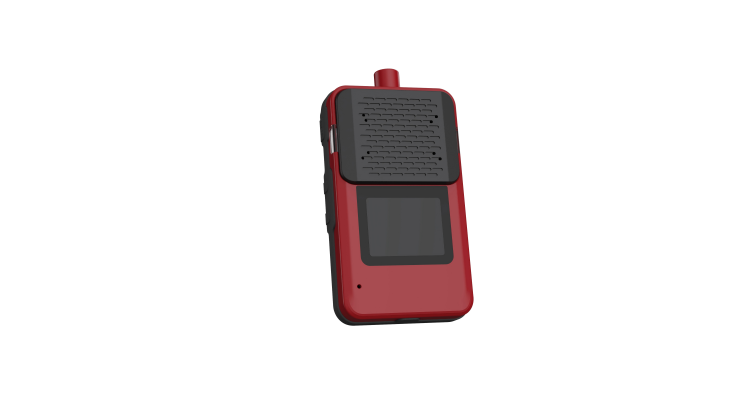

Portable_Gas Detector XM314-Side.png

XM314

Explosion Proof Portable Gas Detector

Introducing our state-of-the-art safety device, designed for optimal performance and reliability, - **Replaceable Sensors**: Easily maintain and upgrade with our user-friendly replaceable sensor feature, ensuring peak accuracy and longevity, - **Intrinsically Safe Explosion-Proof Design**: Engineered with utmost safety in mind, this device is certified for explosive environments, making it ideal for various industrial applications, - **4-in-1 Pump-Suction Functionality**: Experience unparalleled versatility with our innovative pump-suction technology, combining multiple functions for efficient monitoring, - **One-Click SOS Alarm**: In critical situations, activate the One-Click SOS Alarm effortlessly, providing immediate assistance when needed, - **Personnel Positioning**: Track the location of personnel with precision, ensuring safety and accountability in any workspace, - **Fall Monitoring**: Advanced fall detection technology helps safeguard users, automatically alerting support personnel in the event of a fall, As a leading Manufacturer in China, we prioritize quality and safety, working closely with trusted Suppliers to deliver exceptional products directly from our Factory. Ensure the best for your operations with our comprehensive safety solutions
    Contact us
    Product Details

    Technical Parameters
    Model XM314
    Sampling Method Pump-suction / Diffusion
    Detection Principle Catalytic, Electrochemical, Infrared, PID
    Detected Gases Flammable gas, Toxic gas
    Measuring Range Flammable gas: 3%~100%LEL; Toxic gas: See toxic gas list for details
    Accuracy ±3%LEL (flammable gas) / ±3%FS (toxic gas)
    Repeatability ≤2%
    Response Time Flammable gas: T90<10s; Toxic gas: See toxic gas list for details
    Alarm Audible alarm, LED light alarm, Vibration alarm
    Output Mode USB interface, Bluetooth (optional)
    Self-diagnosis Low battery, Calibration prompt, Sensor life, Sensor failure, Calibration signal lock, Insufficient register memory, Air pump blockage, Air pump air leakage
    Sound Intensity ≥90dB @ 0.3m
    Historical Records Power on/off records, Zero adjustment records, Calibration records, Alarm records, Fault records
    Power Supply Lithium battery, Nominal voltage 3.6V, Capacity 2400mAh
    Power Consumption ≤1W
    Battery Life ≥10h, Normal temperature
    Main Material Soft rubber: Anti-static TPU; Hard rubber: Anti-static PC
    Weight 0.5kg
    Explosion-proof Certification Ex db ia IIC T4 Ga
    Metrological Certification CPA
    Executive Standard GB15322.3-2019, GB3836.1-2021, GB3836.2-2021, GB3836.4-2021, JJF1364-2012, JJF1368-2012, JJF1421-2013
    Protection Grade IP67
    Temperature Range -40°C~60°C
    Humidity Range 10%~95%RH (No condensation)
    Pressure Range 86kPa~106kPa
    Product Selection
    Model Diffusion Pump-suction No. of Sensors 4G GPS Gyroscope Gooseneck Tube
    XM311 ✓ 1
    XM311CGT ✓ 1 ✓ ✓ ✓
    XM311BCGT ✓ 1 ✓ ✓ ✓
    XM311-J ✓ 1 ✓
    XM311CGT-J ✓ 1 ✓ ✓ ✓ ✓
    XM312 ✓ 2
    XM312CGT ✓ 2 ✓ ✓ ✓
    XM312BCGT ✓ 2 ✓ ✓ ✓
    XM313 ✓ 3
    XM313CGT ✓ 3 ✓ ✓ ✓
    XM313BCGT 3 ✓ ✓ ✓
    XM314 ✓ 4
    XM314CGT ✓ 4 ✓ ✓ ✓
    XM314BCGT ✓ 4 ✓ ✓ ✓
    Frequently Asked Questions
    Q What detection principles does the XM314 portable gas detector support?
    The XM314 supports four detection principles: Catalytic, Electrochemical, Infrared, and PID. This allows it to detect a wide range of flammable and toxic gases across various industrial environments.
    Q What is the battery life of the XM314 gas detector?
    The XM314 is powered by a 3.6V lithium battery with a capacity of 2400mAh. Under normal temperature conditions, the battery life is ≥10 hours, ensuring reliable operation throughout a full work shift.
    Q What is the IP rating and operating temperature range of the XM314?
    The XM314 carries an IP67 protection rating, meaning it is fully dust-tight and can withstand temporary immersion in water. It operates reliably across a wide temperature range of -40°C to 60°C, making it suitable for harsh industrial environments.
    Q What alarm types are available on the XM314?
    The XM314 features three types of alarms: audible alarm, LED light alarm, and vibration alarm. The sound intensity reaches ≥90dB at 0.3m, ensuring alerts are clearly noticeable even in noisy industrial settings.
    Q What is the difference between the XM314, XM314CGT, and XM314BCGT models?
    All three models support 4 sensors. The XM314 uses diffusion sampling without 4G, GPS, or gyroscope. The XM314CGT adds diffusion sampling plus 4G, GPS, and gyroscope features. The XM314BCGT uses pump-suction sampling and also includes 4G, GPS, and gyroscope capabilities.
    Q What certifications does the XM314 gas detector hold?
    The XM314 holds the explosion-proof certification Ex db ia IIC T4 Ga and metrological certification CPA. It complies with multiple executive standards including GB15322.3-2019, GB3836.1-2021, GB3836.2-2021, GB3836.4-2021, JJF1364-2012, JJF1368-2012, and JJF1421-2013.
