Description

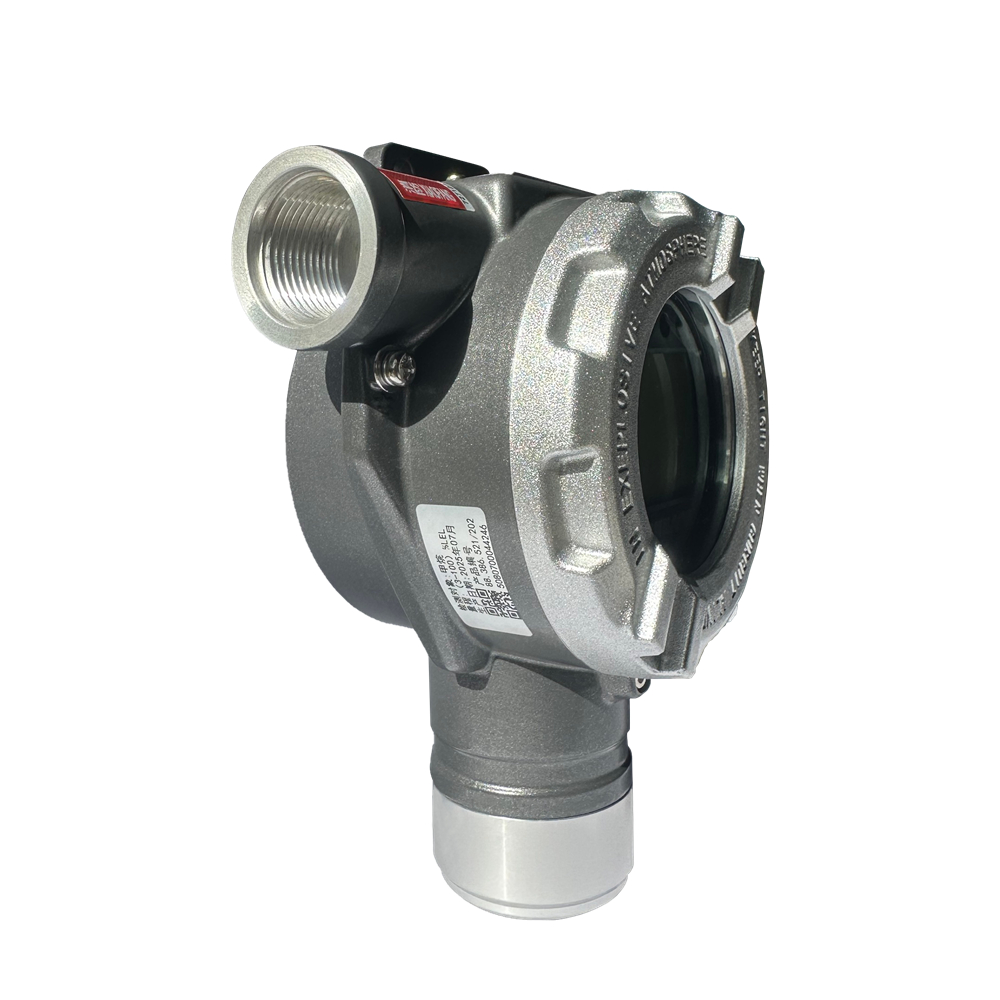

The GTYQ-AT0601 and GTYQ-AT0601A are self-sufficient explosion-proof combustible gas detectors built for independent operation in hazardous industrial zones. Certified for explosion and dust ignition proof performance, they comply with strict safety standards for flammable gas monitoring in high-risk locations. Powered directly by AC220V, they can run stably without relying on an external control host, making them perfect for decentralized monitoring scenarios. Infrared remote control is supported for non-intrusive debugging, allowing on-site parameter adjustment without opening the enclosure. The digital sensor assembly allows direct replacement without on-site calibration, cutting maintenance time and ensuring continuous detection. With an IP66 protection grade, they resist dust and water intrusion to adapt to harsh working environments. The base AT0601 uses a high-brightness digital tube display, while the AT0601A upgrades to an LCD screen and integrates NB-IoT communication for cloud-based centralized monitoring. Both models support offline solenoid valve detection, wireless valve connection and automatic power-failure valve shut-off, providing comprehensive safety protection for urban gas stations, industrial workshops and commercial sites.Detector Specification
| Model | GTYQ-AT0601 / 0601A |
| Measuring gas | Combustible gases (Methane, propane, isobutane, hydrogen, etc.) |
| Measuring type | Diffusion type |
| Measuring method | Catalytic / Option: semiconductor |
| Measuring Range | 0-100% LEL |
| Response time | < 15sec / 90% scale |
| Accuracy | ±3% / Full Scale |
| Operation mode display | Normal / High Alarm / Low Alarm / Trouble LED |

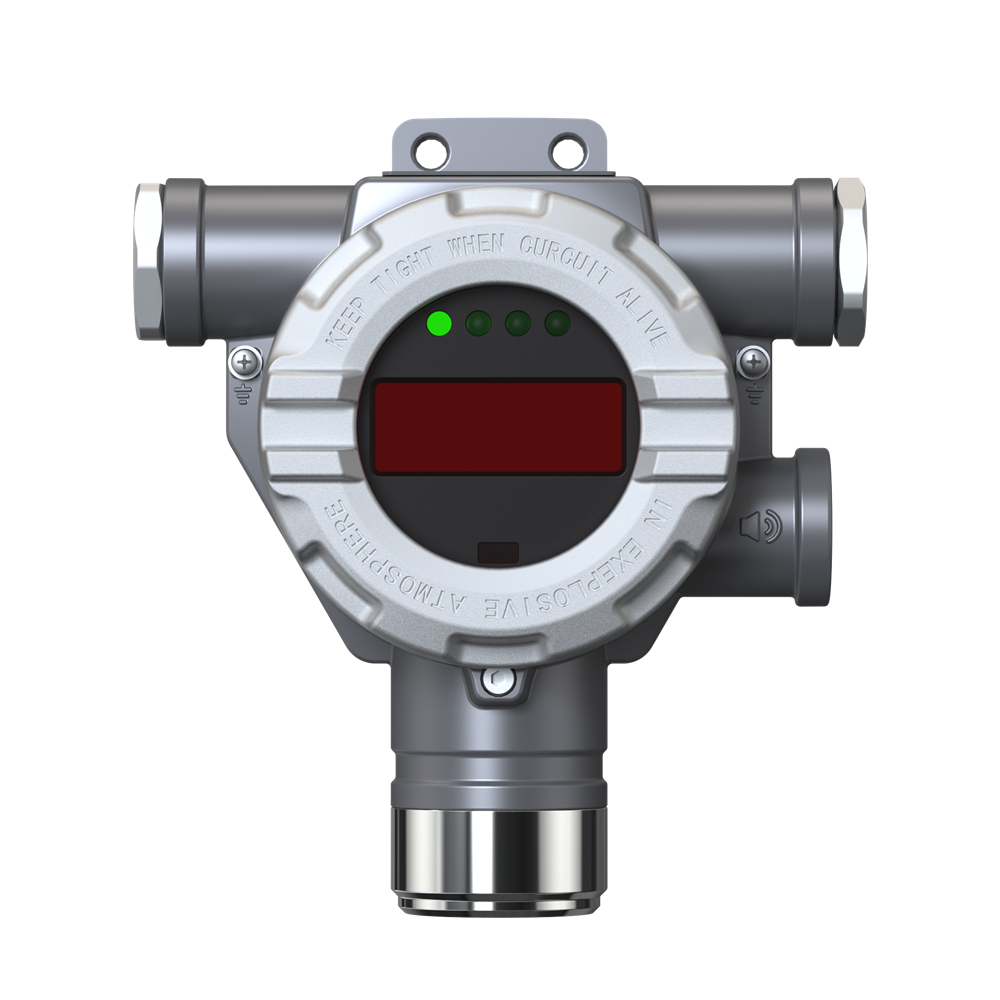

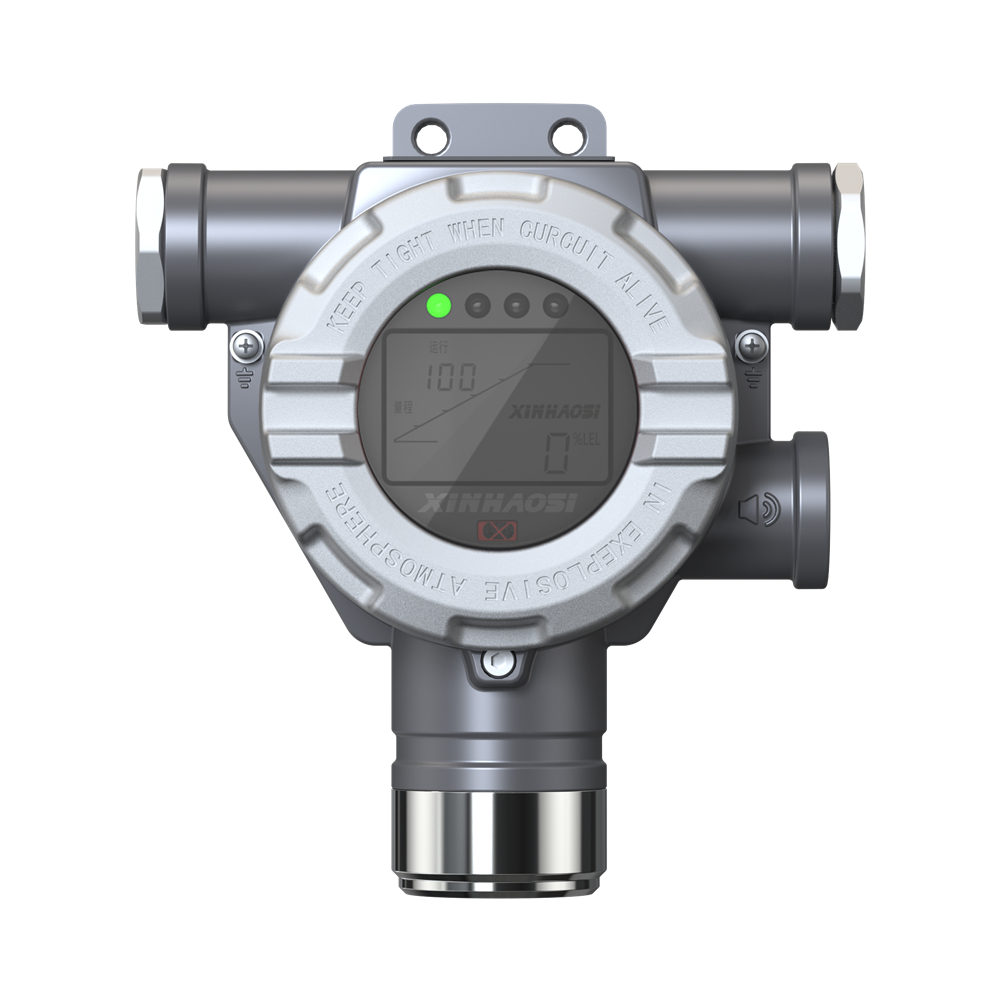

| Measuring value display | Digital tube (AT0601) LCD display (AT0601A) |
| Power | AC220V / 50Hz |
| Alarm signal output | Light and sound output / 50mA |
| Relay output | One-channel adjustable relay output, AC220V/1A One-channel DC24V pulse output, DC24V/2AW Wireless solenoid 4-channel Max |
| Conduit connection | Standard: 3xM26x1.5P Option: FPT3/4',NPT3/4'' |
| Mounting type | Wall/Pole/Ceiling mount |
| Operating temperature | -40°C ~ +70°C |
| Operating humidity | 5 to 95% RH (Non-condensing) |
| Housing Material | Aluminum alloy |
| Dimensions | 150(W) x 166.3(H) x 76(D) mm |
| Explosion Proof | Ex db IIC T6 Gb |
| CERTIFICATION | Refer to website |
Sensor Specification
| Sensor Type | Measuring Gas | Molecular Formula | Measuring Range | Operating Temperature | Typical Life | Response Time |
| Infrared Type | Combustible gases | / | 3-100%LEL | -40~+70℃ | 60 month | <30sec / 90% scale |
| Carbon dioxide | CO₂ | 0~2%vol | -40~+70℃ | 60 month | <45 sec / 90% scale | |
| Nitrous oxide | N₂O | 0-1000 ppm | -40~+70℃ | 60 month | <45 sec / 90% scale | |
| Catalytic Type | Combustible gases | / | 3~100%LEL | -40+50℃ | 36 month | <15 sec / 91% scale |
Sensor Features
| Catalytic Type | Linear Output : Output signal shows a good linear relationship with gas concentration, enabling precise concentration readings. | |||||||
| High Stability : Minimal performance fluctuations during long-term use, ensuring reliable detection results. | ||||||||
| High Sensitivity & Fast Response : Quickly captures gas concentration changes and triggers timely alerts. | ||||||||
| Broad-Spectrum Capability : Detects most flammable gases and flammable vapors (e.g., hydrogen (H₂), methane (CH₄), propane (C₃H₈), ethanol vapors, etc.). | ||||||||
| Poisoning Resistance & Low Consumption : Exhibits certain tolerance to common poisoning substances (e.g., silicon, lead compounds), with a long service life and low attrition rate. | ||||||||
| Infrared (IR) Type | Mature Dual-Compensation Technology : Utilizes non-dispersive infrared (NDIR) with dual detectors (measurement/reference channels) to compensate for environmental interference, enhancing detection accuracy. | |||||||
| High Sensitivity & Stability : Detects gases based on their characteristic absorption of specific infrared wavelengths, unaffected by oxygen concentration. | ||||||||
| No Poisoning Risk : No chemical reactions occur, preventing sensor degradation due to gas exposure. | ||||||||
| Low Power Consumption : Suitable for long-term continuous monitoring. | ||||||||
| Works in Oxygen-Free Environments : Operates without requiring oxygen participation. | ||||||||
| Fast Response, Low Maintenance, Long Lifespan : Simple mechanical structure ensures minimal performance decay over time. | ||||||||
