IFD2020

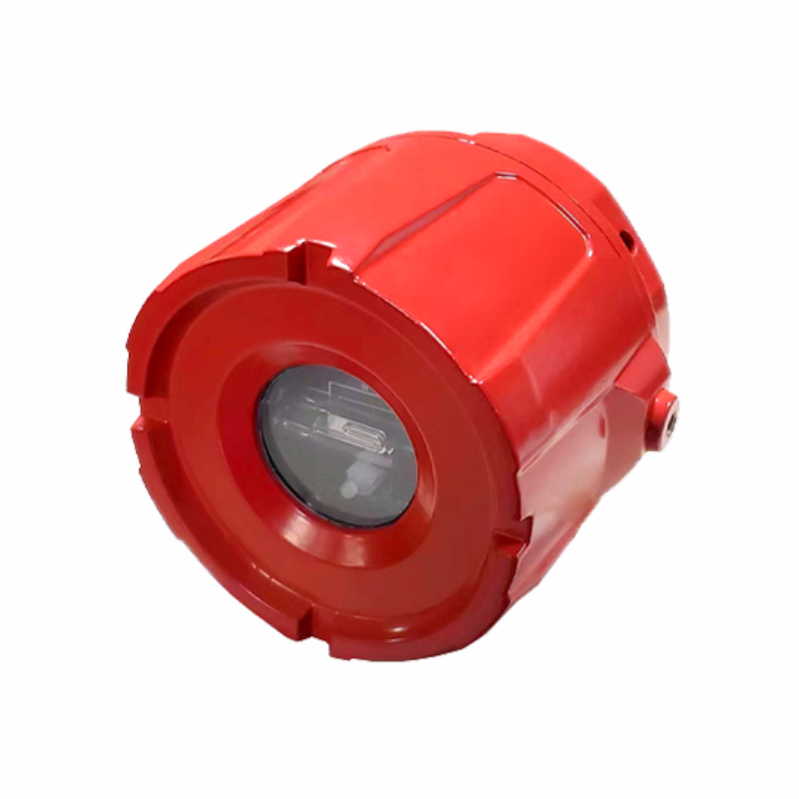

IFD2020 Single UV Flame Detector

•Sensor: UV flame sensor

•Response spectral range: 185nm~260nm

•Sampling mode: Real-time optical path sampling

•Display mode: LED indication

•Operating voltage: DC18-30V

product details

product description

Technical Parameters

Model	IFD2020 Single UV Flame Detector
Sensor	UV flame sensor
Response spectral range	185nm~260nm
Sampling mode	Real-time optical path sampling
Display mode	LED indication
Status indication	The blinking green lamp indicates the normal operation, and the permanently-illuminated red lamp indicates a fire alarm.
Response time	Level I:6-8 seconds
	Level II:18-22 seconds
	Level III:22-26 seconds
	Level IV:3-4 seconds
Output signal	4-20mA current;
	Faulty relay passive output (AC:3A 250V, DC:3A 30V)
	Fire alarm relay passive output (AC:3A 250V, DC:3A 30V)
Operating voltage	DC18-30V
Operating current	≤30mA(DC24V)
Installation mode	Wall-mounted or suspended
Maximum detection distance	30m 0.3mx0.3m n-heptane flame
Operating temperature	-40~+70°C
Operating humidity	≤95%RH(without condensation)
Detection angle	120°
Shell	Aluminum alloy
Weight	0.6Kg±0.05Kg
Electric interface	M20X1.5
Explosion-proof mark	Ex db IIC T6 Gb/Ex tb IIIC T80°C Db
Degree of protection	IP66

Description

The IFD20 single UV flame detector is a kind of new-type intelligent fire detection equipment. The detector adopts the advanced UV detection technology. The UV flame detector using the solar blind band is able to suppress the interference from the sunlight in a good manner, so as to achieve a fast response to and accurate identification of the flame signal. The detector adopts the non-contact detection, and its sensitivity can be adjusted on the site. It is provided with a passive connection, and its standard current output is connected with the fire alarm system.
