Description

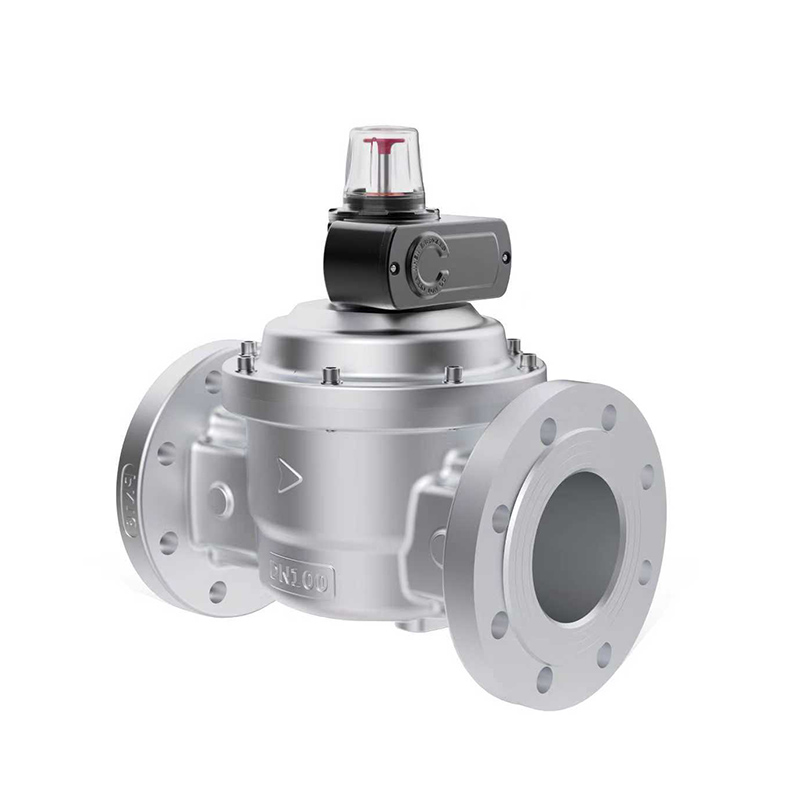

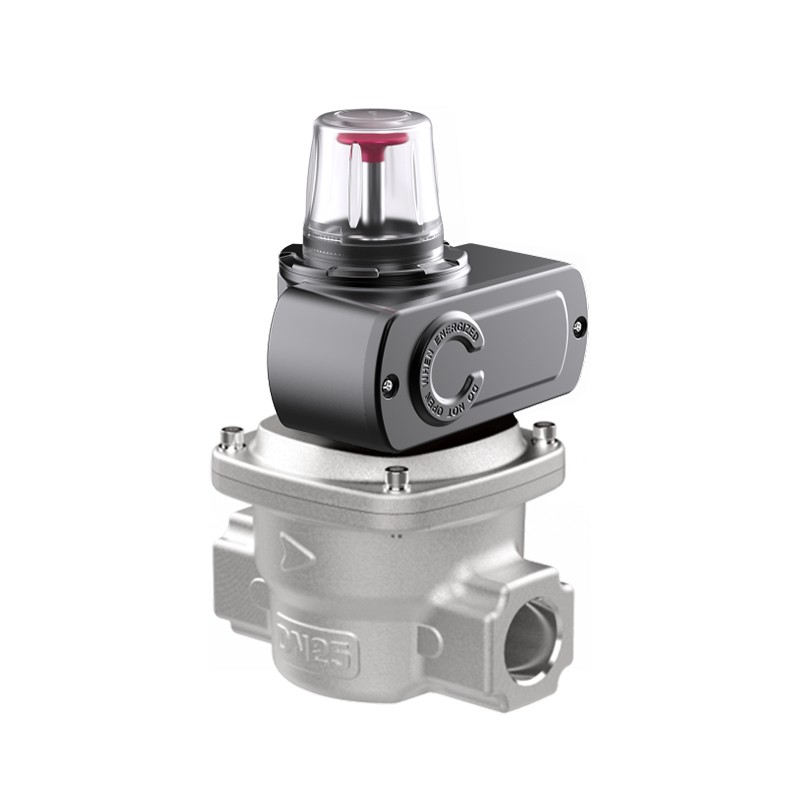

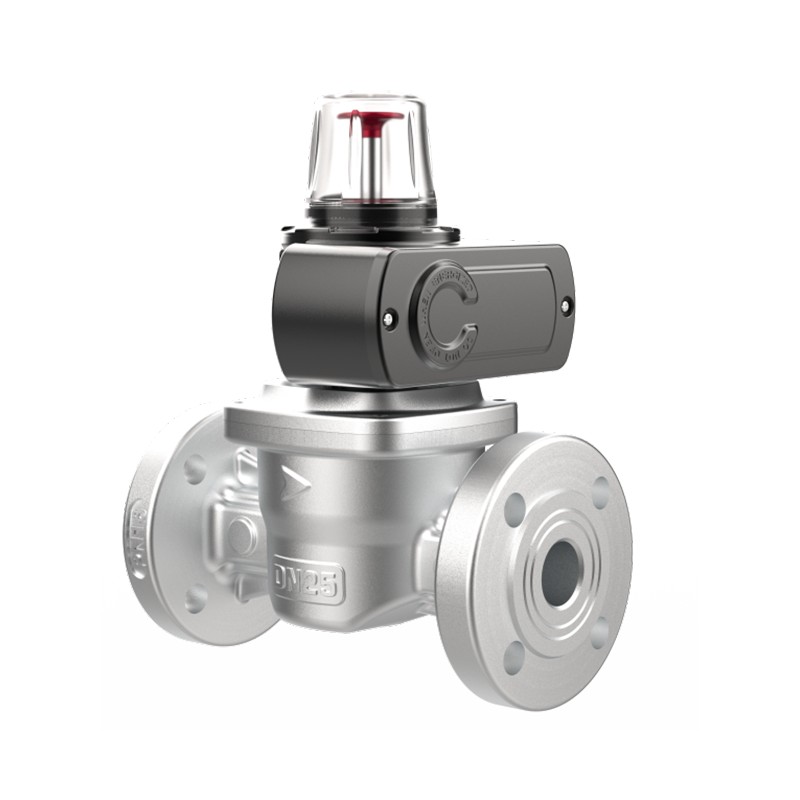

The CT-XF5 Series Industrial Gas Solenoid Valve (Normally Closed) is versatile for industrial natural gas systems. Its body has aluminum alloy (DN25-DN200) and cast steel (DN250-DN300) options, with NBR/FKM sealing for airtightness. Operating at -20°C~+60°C, it fits workshops and gas stations. Manual opening (power-on) and dual closing methods (manual/power-off) ensure reliability; normally closed design prevents leakage when powered off. Driving voltage supports DC24V/AC220V, adapting to different power systems. Closing time is 1-2s by pipeline size, cutting off gas rapidly in emergencies. Supporting thread/flange interfaces, its stainless steel actuator enhances durability. IP66 protection, 10-year service life and Ex mb IIC T6 Gb explosion-proof grade ensure safety. XBUS communication enables remote monitoring. Compliant with GB 44016-2024, it’s a reliable industrial gas protection device.
Specification
| Applicable Gas | Natural gas |
| Body Material | Aluminum alloy (DN25-DN200) / Cast steel (DN250-DN300) |
| Sealing Material | NBR / FKM rubber |
| Operating Temperature | -20°C ~ +60°C |
| Opening Method | Manual (Power-on condition) |
| Closing Method | Manual / Power-off |
| Driving Voltage | DC 24V , AC 220V/50Hz |
| Valve Closing Time | ≤ 1s DN15-65 / ≤ 2s DN85-200 / ≤ 2s DN250-300 |
| Interface Type | Thread / Flange (PN16) |
| Actuator Material | Stainless steel |
| Protection Grade | IP66 |
| Service Life | 10 years (typical) |
| Explosion-proof Grade | Ex mb IIC T6 Gb |
| Explosion-proof Type | Encapsulated type |
| Communication Method | XBUS |
| Execution Standard | GB 44016 - 2024 |
Industrial Gas Solenoid Valve Threaded Normally Closed Type (DC24V/AC220V CT-XF5 Series)
| Model | Pipe Diameter | Maximum Working Pressure | Connection Size | Working Voltage | Closing Method |
| DRQF-25-0.4/BTLNE-XF5 | DN25 | 0.4MPa | Rp1 | DC24V/AC220V | Power-off |
| DRQF-25-0.1/BTLNE-XF5 | 0.1MPa | ||||
| DRQF-32-0.4/BTLNE-XF5 | DN32 | 0.4MPa | Rp1¼ | ||
| DRQF-32-0.1/BTLNE-XF5 | 0.1MPa | ||||
| DRQF-40-0.4/BTLNE-XF5 | DN40 | 0.4MPa | Rp1½ | ||
| DRQF-40-0.1/BTLNE-XF5 | 0.1MPa | ||||
| DRQF-50-0.4/BTLNE-XF5 | DN50 | 0.4MPa | Rp2 | ||
| DRQF-50-0.1/BTLNE-XF5 | 0.1MPa |
Industrial Gas Solenoid Valve Flanged Normally Closed Type (DC24V/AC220V CT-XF5 Series)
| Model | Pipe Diameter | Maximum Working Pressure | Connection Size | Working Voltage | Closing Method |
| DRQF-25-0.4/BTLNE-XF5 | DN25 | 0.4MPa | 4-Φ14, D85 | DC24V/AC220V | Power-off / Manual |
| DRQF-25-0.1/BTLNE-XF5 | 0.1MPa | ||||
| DRQF-32-0.4/BTLNE-XF5 | DN32 | 0.4MPa | 4-Φ18, D100 | ||
| DRQF-32-0.1/BTLNE-XF5 | 0.1MPa | ||||
| DRQF-40-0.4/BTLNE-XF5 | DN40 | 0.4MPa | 4-Φ18, D110 | ||
| DRQF-40-0.1/BTLNE-XF5 | 0.1MPa | ||||
| DRQF-50-0.4/BTLNE-XF5 | DN50 | 0.4MPa | 4-Φ18, D125 | ||
| DRQF-50-0.1/BTLNE-XF5 | 0.1MPa | ||||
| DRQF-65-0.4/BTLNE-XF5 | DN65 | 0.4MPa | 8-Φ18, D145 | ||
| DRQF-65-0.1/BTLNE-XF5 | 0.1MPa | ||||
| DRQF-80-0.4/BTLNE-XF5 | DN80 | 0.4MPa | 8-Φ18, D160 | ||
| DRQF-80-0.1/BTLNE-XF5 | 0.1MPa | ||||
| DRQF-100-0.4/BTLNE-XF5 | DN100 | 0.4MPa | 8-Φ18, D180 | ||
| DRQF-100-0.1/BTLNE-XF5 | 0.1MPa | ||||
| DRQF-125-0.4/BTLNE-XF5 | DN125 | 0.4MPa | 8-Φ18, D210 | ||
| DRQF-125-0.1/BTLNE-XF5 | 0.1MPa | ||||
| DRQF-150-0.4/BTLNE-XF5 | DN150 | 0.4MPa | 8-Φ22, D240 | ||
| DRQF-150-0.1/BTLNE-XF5 | 0.1MPa | ||||
| DRQF-200-0.4/BTFNE-XF5 | DN200 | 0.4MPa | 12-Φ22, D295 | ||
| DRQF-200-0.1/BTFNE-XF5 | 0.1MPa | ||||
| DRQF-250-0.4/BTFNE-XF5 | DN250 | 0.4MPa | 12-Φ26, D355 | ||
| DRQF-250-0.1/BTFNE-XF5 | 0.1MPa | ||||
| DRQF-300-0.4/BTFNE-XF5 | DN300 | 0.4MPa | 12-Φ26, D410 | ||
| DRQF-300-0.1/BTFNE-XF5 | 0.1MPa |
